SD22 hydraulic cylinder

23Y-62B-01000

Shantui bulldozer cylinders

blade cylinder (left)

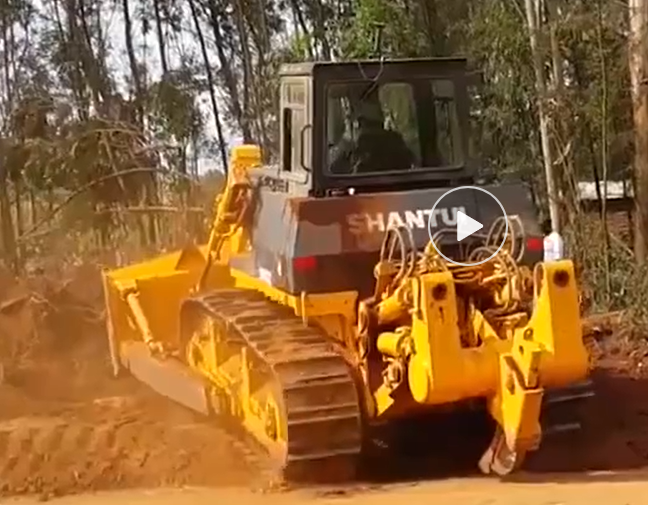

This is not a vedio

SHANTUI 23Y-89B-01400 Single tooth ripper angle adjusting cylinder (right)

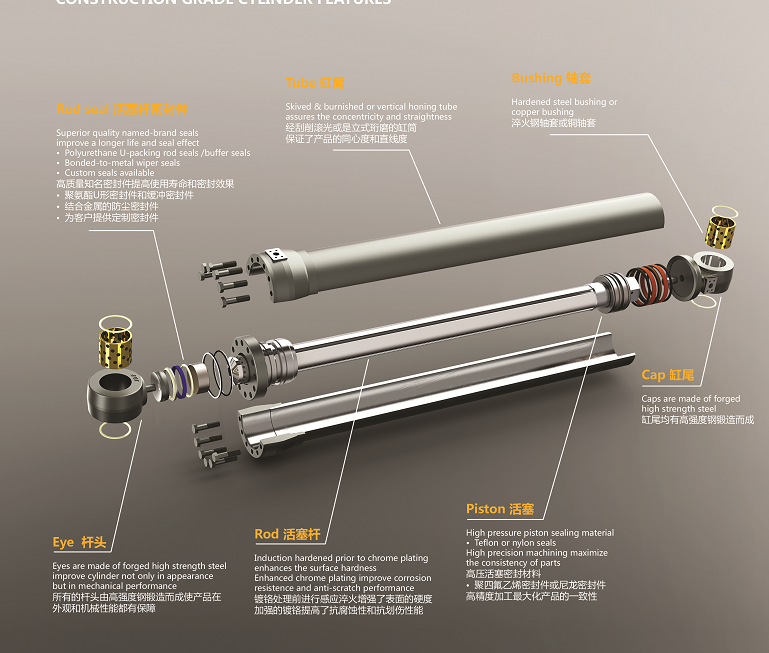

rod chrome thickness : 30 to 100 microns

optimal value is 50 microns.

chrome quality and hardness is critically important , we checked every month.

rod diameter control : if the measure value is out of tolerance by more than 0.02mm, reject.

rod roughness is Ra 0.09-0.16

if more than Ra0.3, reject.

centrol length of this rod , if out of tolerance by more than 1.5mm. reject.

barrel ID roughness is about Ra 0.25, if surface value is more than 0.5, reject.

cushion sleeve ---hardness should be 55-60 HRC.

if lower than 45 HRC, reject

Test before packing :

At least 10 miuntes of test is required for each cylinder.

And the testing pressure can not be lower than working pressure.

During testing, the extension and retraction of the rod should be smooth, the chrome surface of the rod should be inspected for any mark or scratch, which are not acceptable.

Be aware of the piston with thread, tighten torque is important for the safety of the hydraulic cylinder.

always apply required torque value.
